Tima version: 0.20.8(2)
LHS version:DeltaTima version: 2.6.6.0
GeometryServer version:FMS type:
Client:
Diagnosis and Solution:
The images use TIMA Petrosea as reference.

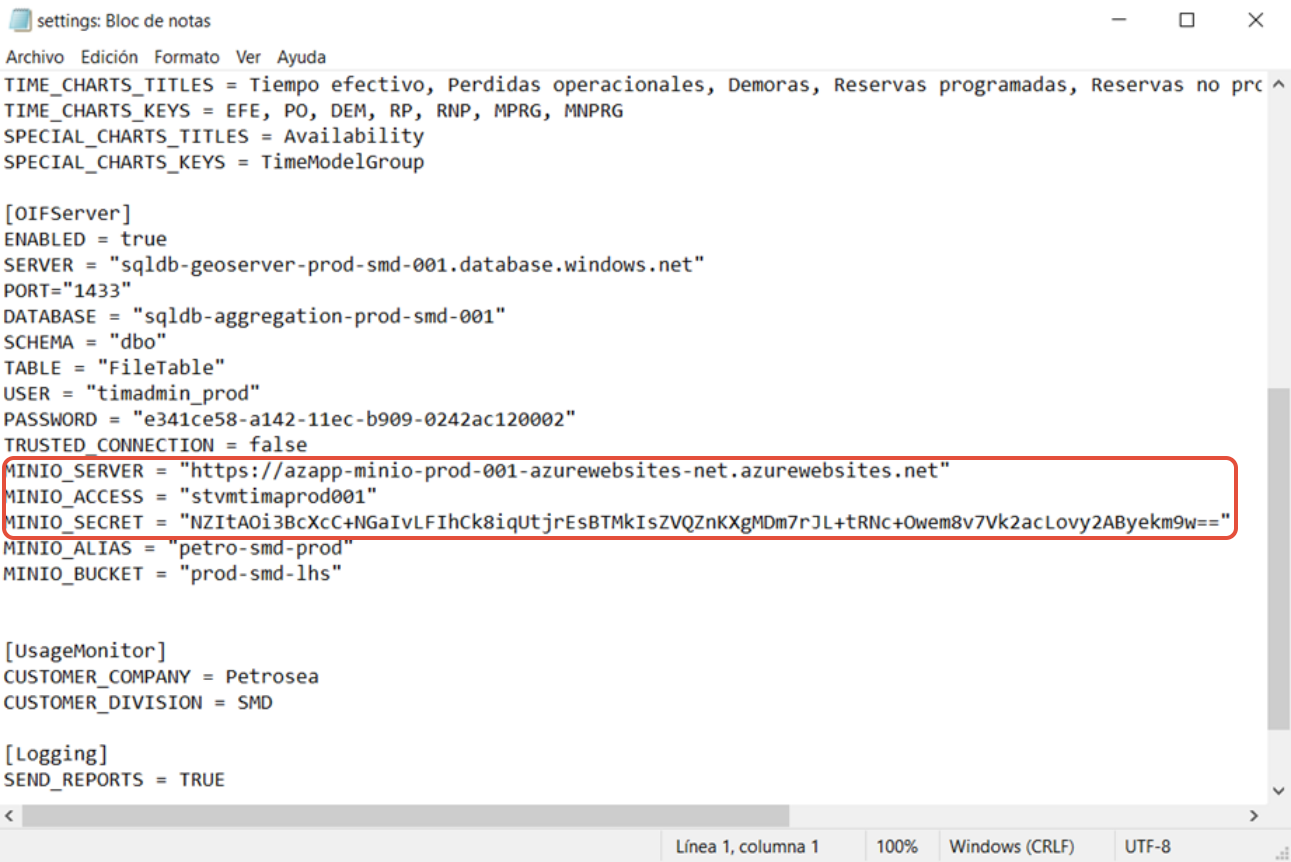

In some occasions we could have loaded wrong data in DeltaTIMA, for example, a topography or plans that aren't from the current period of time. We can notice this by checking up TIMA, thus if you have doubts, you could go to check MinIO. To log in you can obtain the credentials from the settings file, in OIFServer or Geometry_Server.ini,

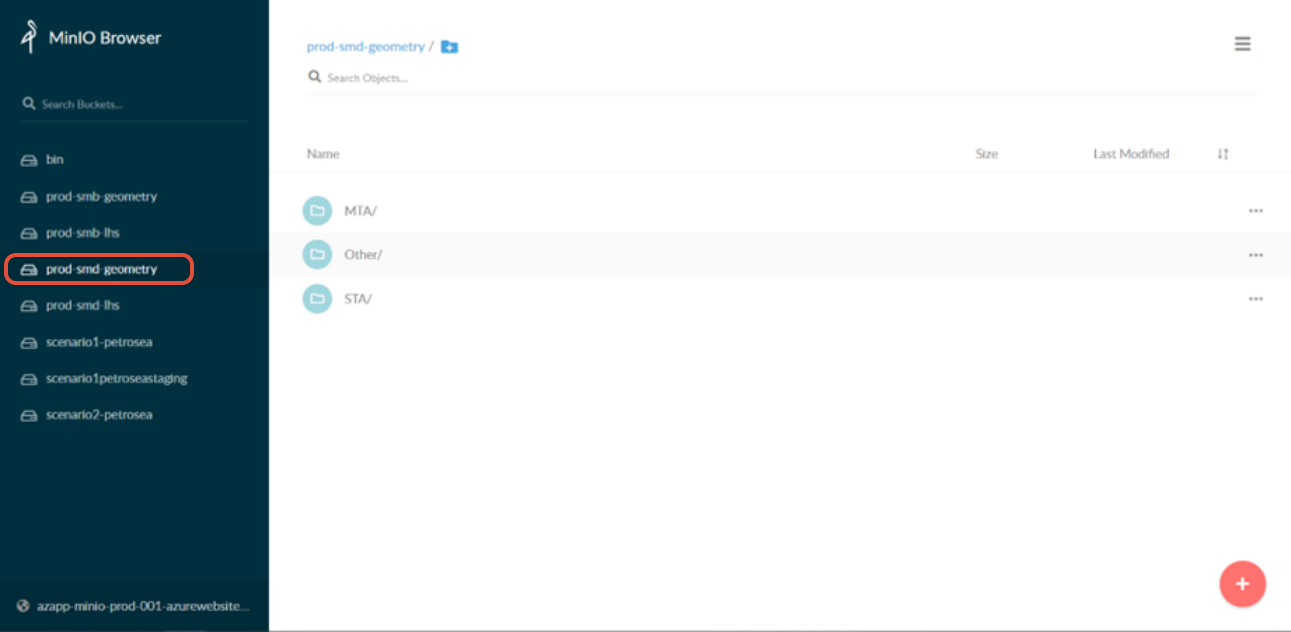

Once there, you have to go to the geometric server of MinIO, the name of the server is different depending of the mine, but the paths on there are standar.

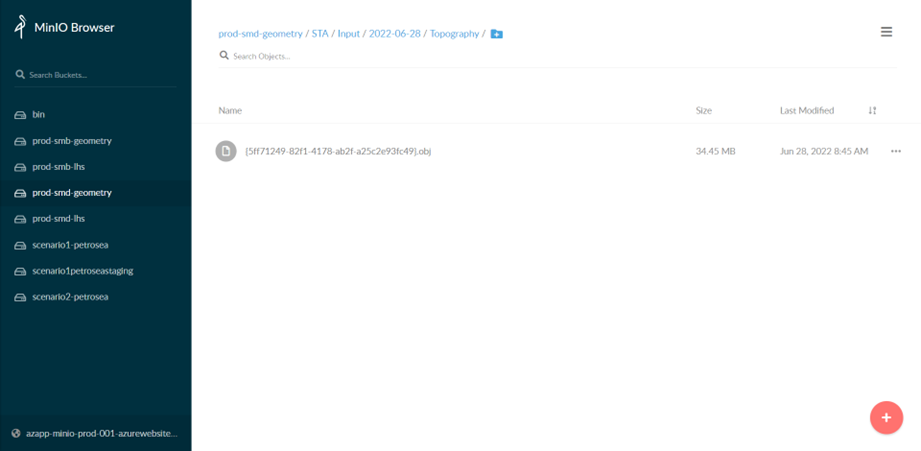

So if we want to get the current loaded topography we should follow the next path:
DMH: geometry-server-prod/STA/Input/”Fecha de la carga a revisar”/Topography
LB: geometry-server/STA/Input/”Fecha de la carga a revisar”/Topography
MLP:

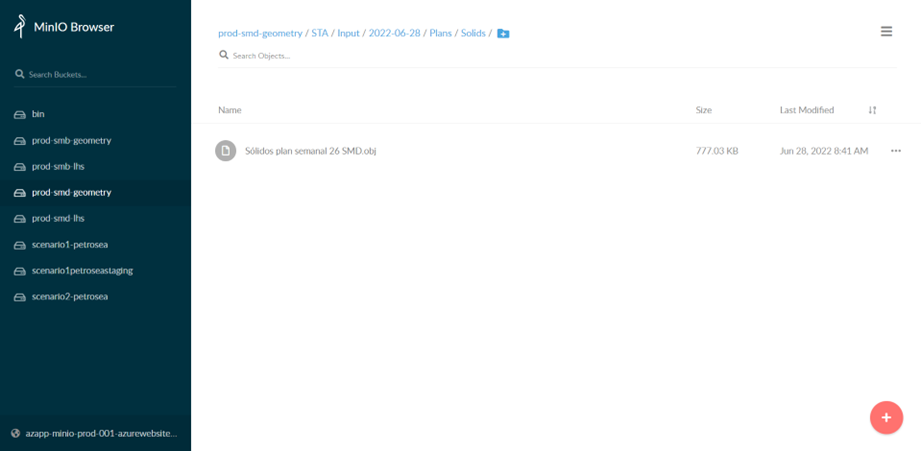

In case we wannt to check the solids:
DMH: geometry-server-prod/STA/Input/”Fecha de la carga a revisar”/Plans/Solids
LB: geometry-server/STA/Input/”Fecha de la carga a revisar”/ Plans/Solids
MLP:
If we click on the name of the archive we want to dowload, its going to appear the next dialog box:
In this step, you have to be carefull to not delet the archive, we dont know the implications of doing it.
Then, you can take the topography to Tangram so you can compare and verify if its the same that you loaded. You can also check the solids on Delta. If indeed the data were loaded wrong, you can load it again and wait for it to show up on TIMA.
